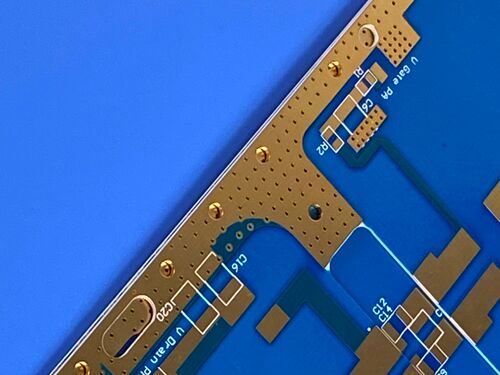

2-layer CuClad 217 PCB Rogers 20mil Laminate with Immersion Gold

This 2-layer rigid PCB complies with international industry standards for reliable performance. It utilizes Rogers CuClad 217 as its base substrate, engineered to meet the stringent requirements of high-frequency and microwave applications with superior electrical and mechanical characteristics.

PCB Specification

PCB Stack-up

The 2-layer rigid PCB features an optimized stackup structure, tailored to enhance mechanical stability and electrical performance, with the following layers (from top to bottom):

Artwork and Quality Standard

Type of Artwork Supplied: Gerber RS-274-X, universally recognized as the industry standard for PCB fabrication.

Quality Standard: IPC-Class-2, a widely adopted quality benchmark formulated by the Association Connecting Electronics Industries.

Availability

This PCB is available for worldwide shipping, supporting global logistics to meet the diverse requirements of international projects and ensure timely delivery.

Introduction to Rogers CuClad 217 Base Material

Rogers CuClad 217 laminates are cross-plied, woven fiberglass and precisely controlled PTFE composite laminates, offering low dielectric constant (Dk) values of 2.17 or 2.20. Their cross-plied construction provides in-plane electrical and mechanical isotropy. CuClad 217 utilizes a low fiberglass/PTFE ratio, delivering the lowest Dk and dissipation factor among fiberglass-reinforced PTFE-based laminates. These integrated properties enable faster signal propagation and higher signal-to-noise ratios, making it suitable for high-frequency applications.

Key Features of Rogers CuClad 217 Material

Benefits of Using Rogers CuClad 217 Material

-Stable dielectric constant (Dk) over a wide frequency range

-Low Dk supports wider line widths, resulting in lower insertion loss

-Low circuit losses at high frequencies

-Improved dimensional stability enhances design flexibility in PCB fabrication

-Enables designers to meet strict application specifications

-Electrical and mechanical isotropy in the X-Y plane

-Well-suited for Er-sensitive circuits

Typical Applications

Leveraging its superior electrical and mechanical properties, this PCB is specifically designed for high-performance microwave and aerospace/defense-related applications, including but not limited to:

-Radars

-Electronic Countermeasures

-Electronic Support Measures

-Microwave Components (LNAs, filters, couplers, etc.)

Conclusion

This 2-layer rigid PCB exhibits exceptional high-frequency performance, structural stability, and manufacturability, which are supported by the superior properties of Rogers CuClad 217 laminate and rigorous pre-shipment quality control protocols.

These characteristics make it an ideal, cost-effective, and reliable solution for global manufacturers engaged in high-performance microwave, radar, and electronic countermeasure projects, particularly those requiring stable low Dk, low insertion loss, and worldwide availability.
